Fybra
The best fiber laser for marking and engraving.
FYBRA generates a high power laser beam from the source to the head via a flexible fiber cable. The innovative main block and the head are designed and optimized to work in a heavy-duty work environment, where vibrations, disturbance, and dust are very common. FYBRA is an extremely comfortable modular system: the main box sets the source and the board with the electronic parts in two different separated areas. The galvanometers are sets, with the lenses in the head block.
The laser fiber allows a considerable increase of the power, without compromising the size of the laser spot. This pledges a better marking result at higher powers and a better efficiency of the system.
The best fiber laser for marking and engraving.
FYBRA generates a high power laser beam from the source to the head via a flexible fiber cable. The innovative main block and the head are designed and optimized to work in a heavy-duty work environment, where vibrations, disturbance, and dust are very common. FYBRA is an extremely comfortable modular system: the main box sets the source and the board with the electronic parts in two different separated areas. The galvanometers are sets, with the lenses in the head block.
The laser fiber allows a considerable increase of the power, without compromising the size of the laser spot. This pledges a better marking result at higher powers and a better efficiency of the system.
What does this laser offer
The fiber lasers allow a considerable increase of the power, without compromising the size of the laser spot. This pledges a better marking result at higher powers and a better efficiency of the system.
Fybra can be controlled by available SW: Nano Software (Standard) and Genius Advanced.

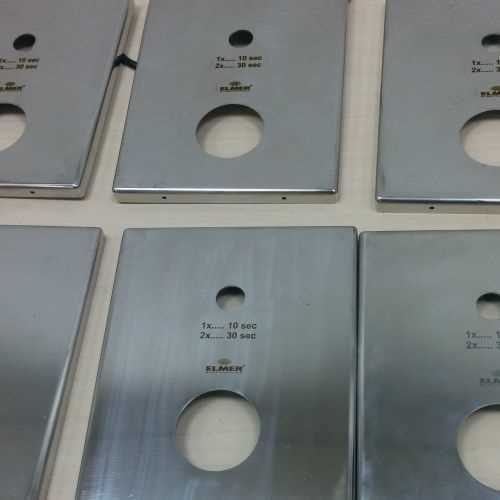

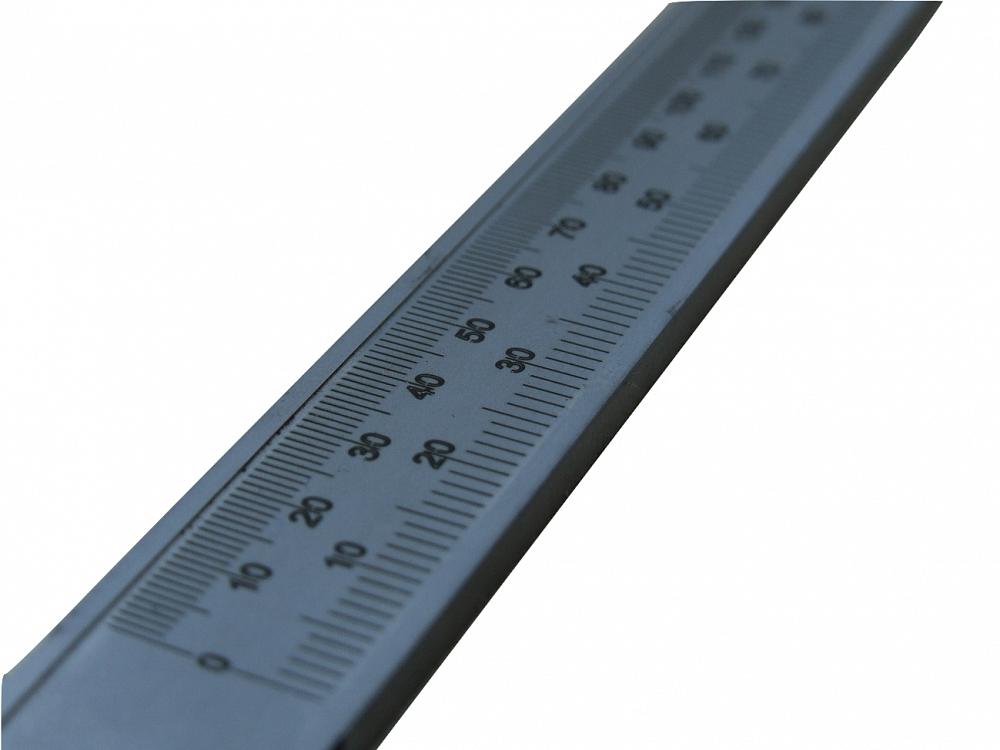

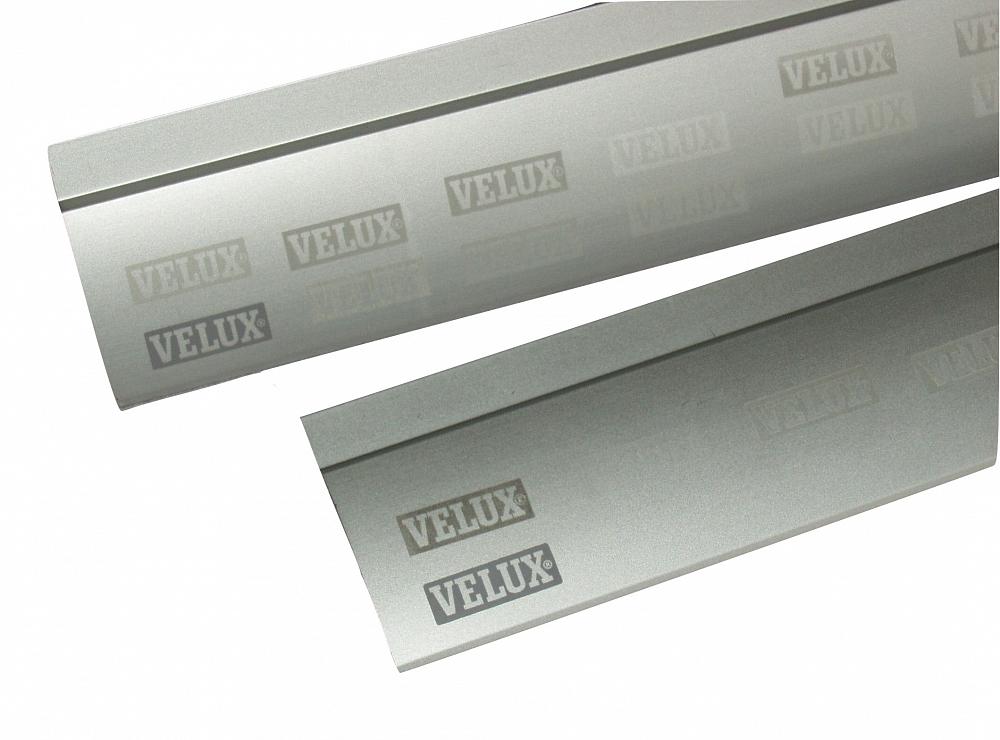

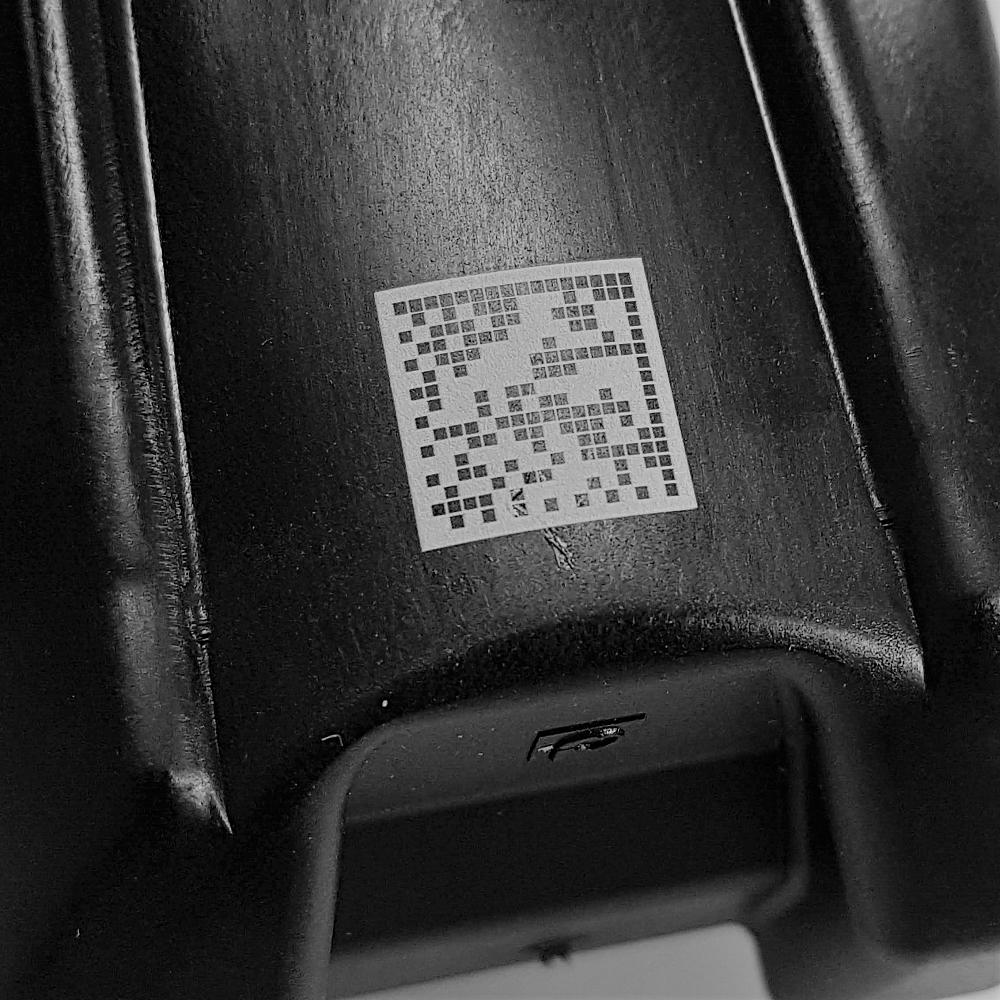

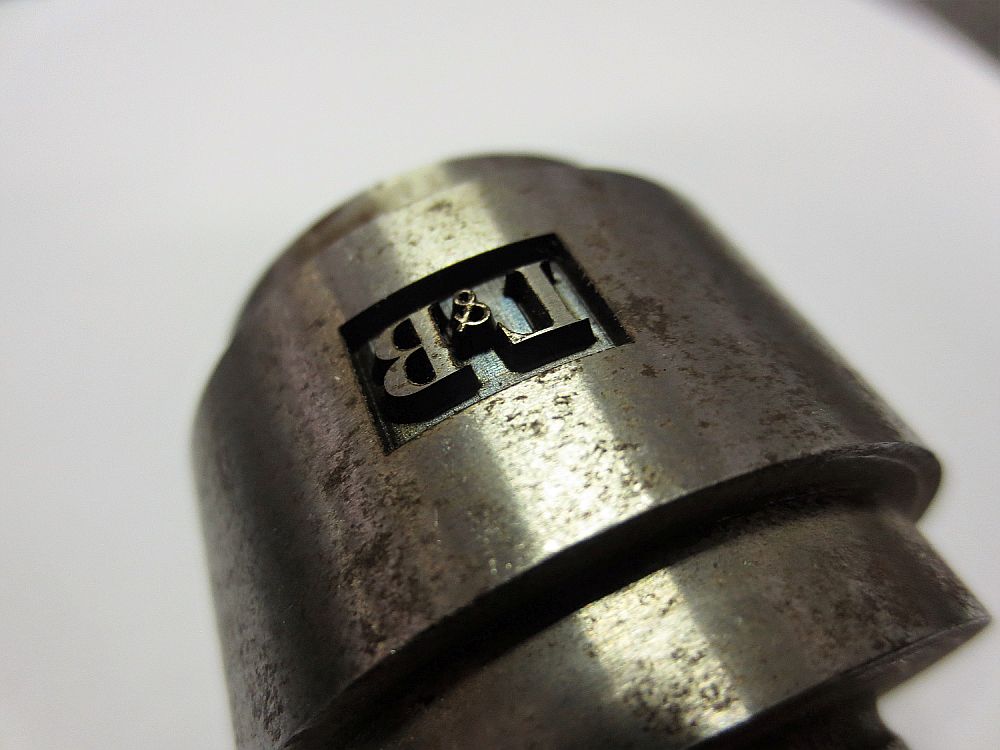

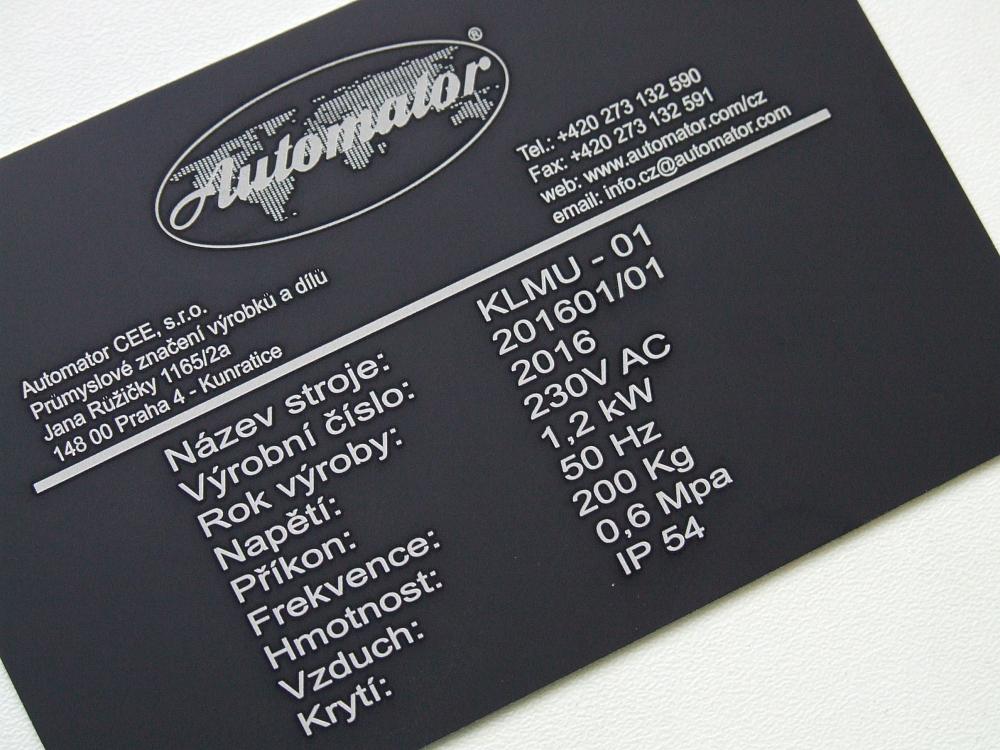

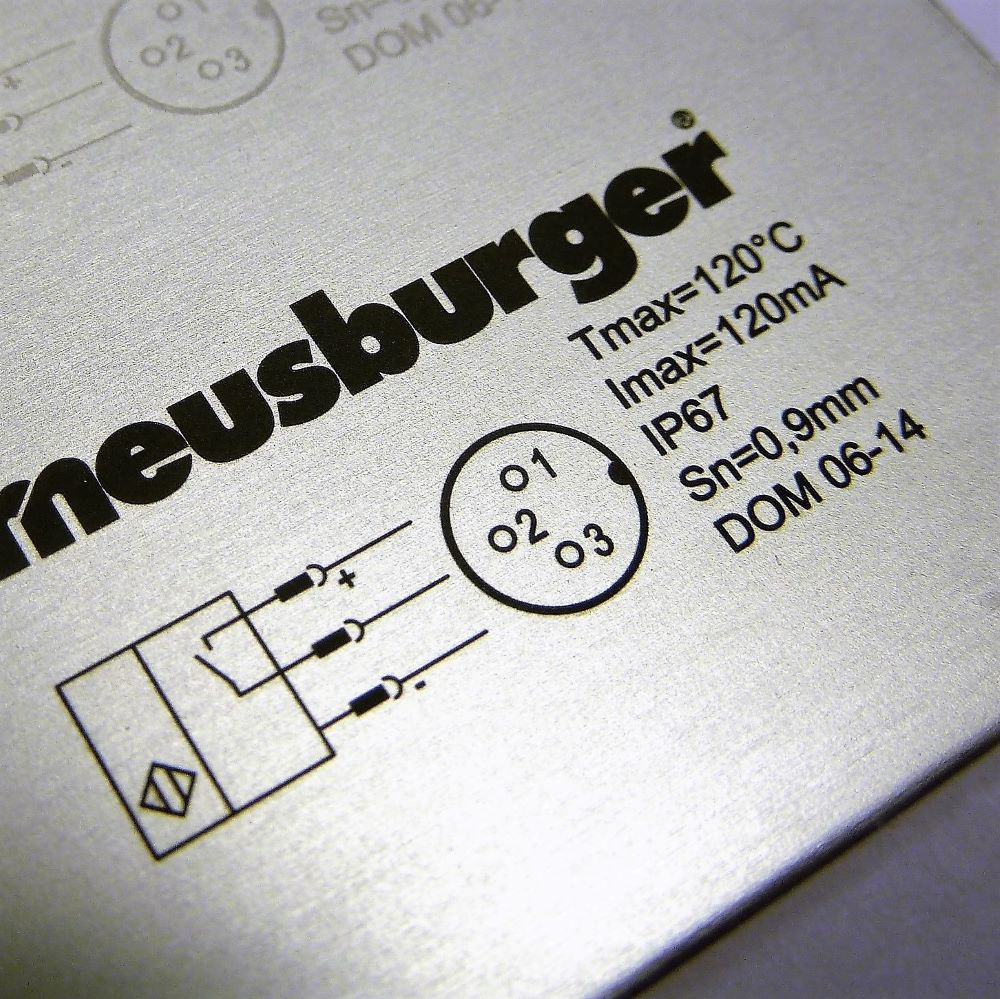

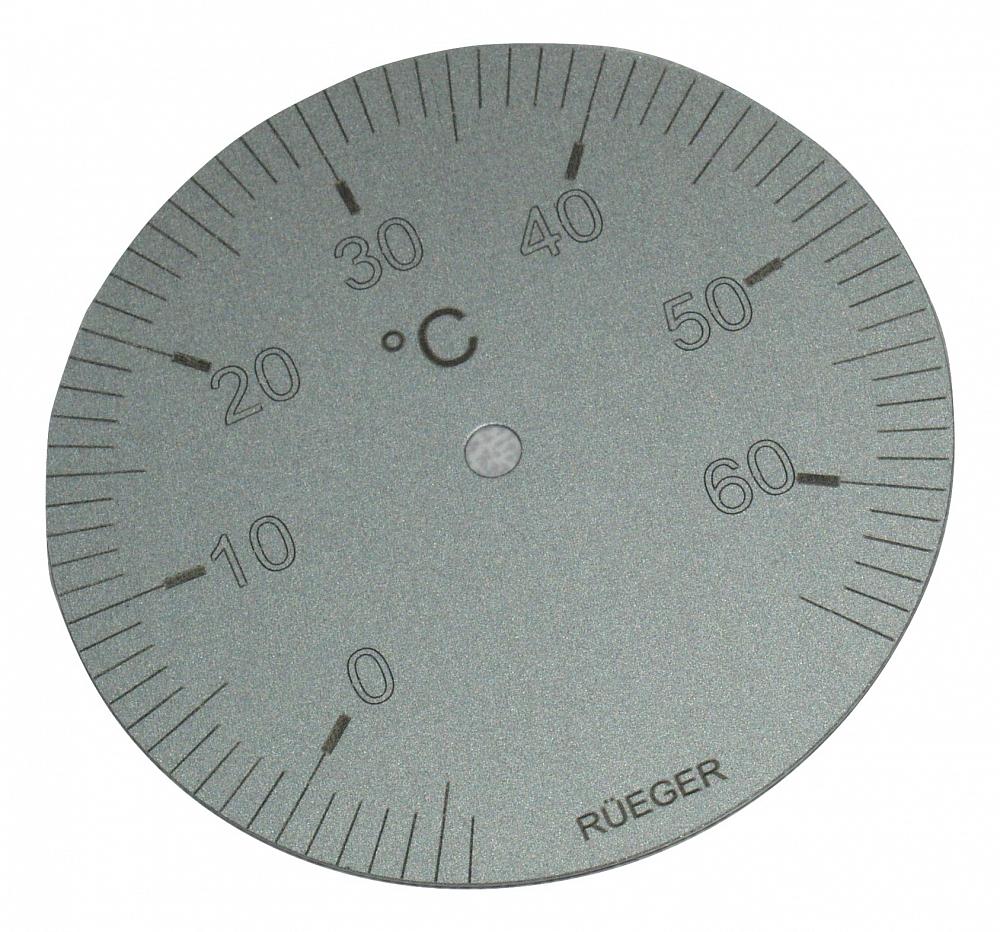

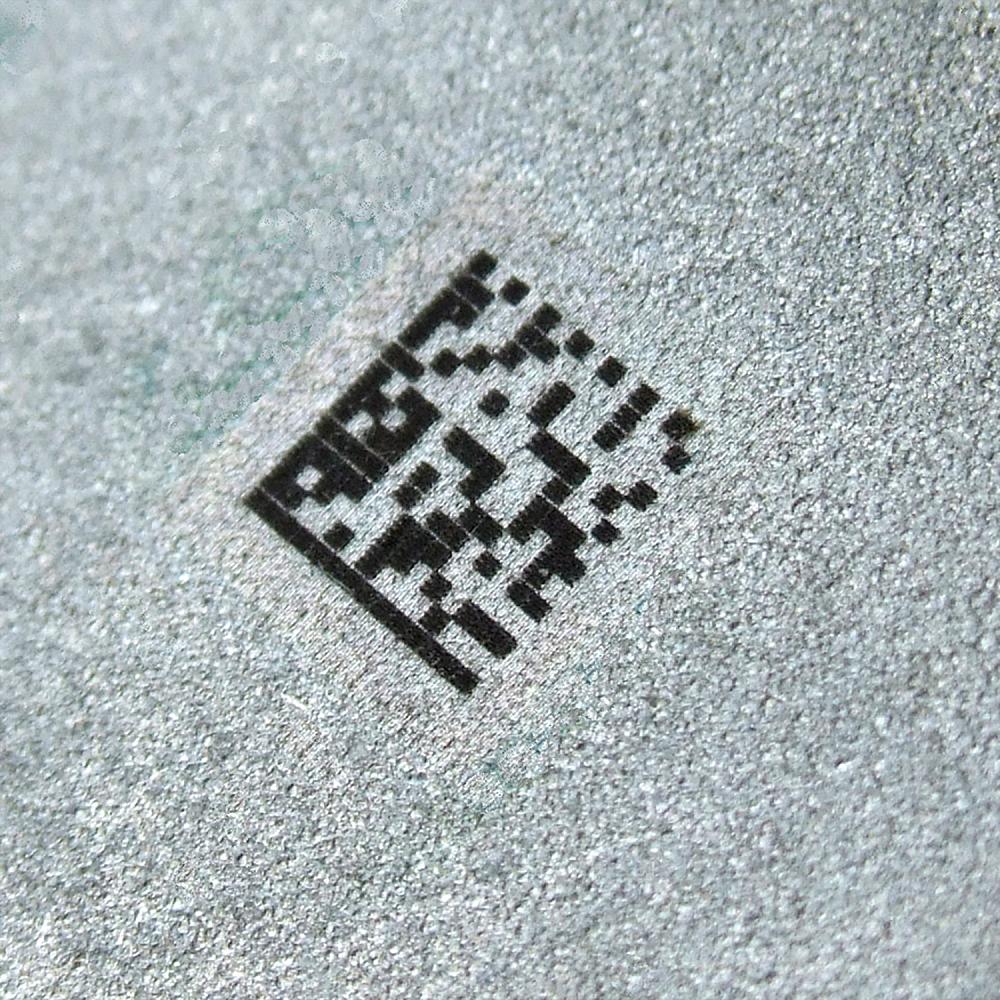

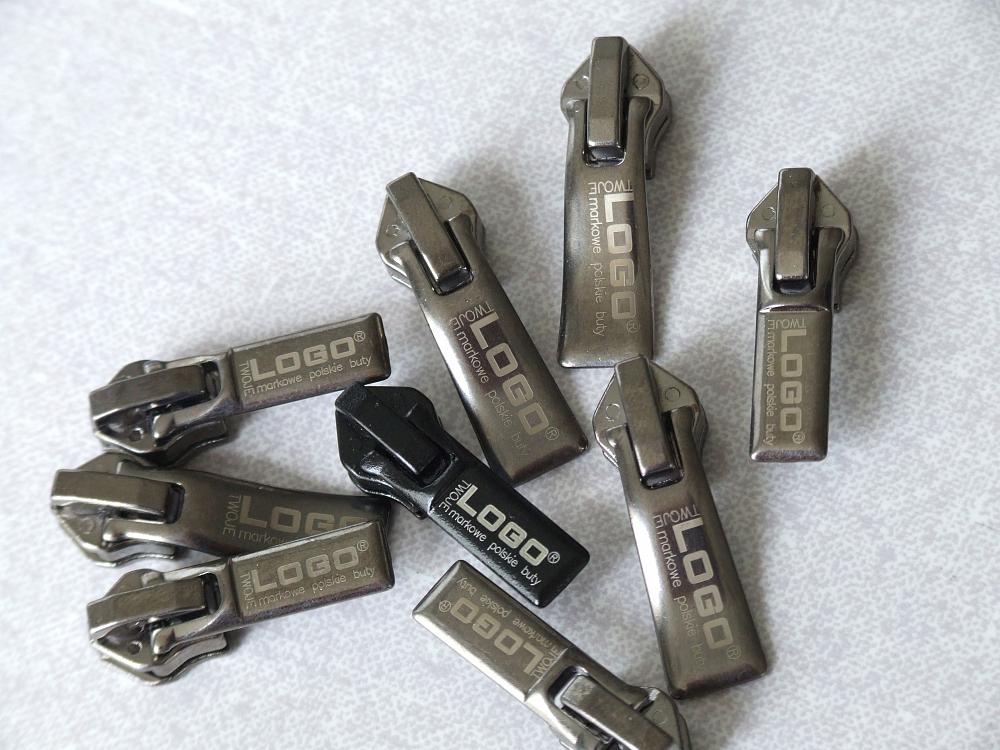

Laser FYBRA is recommended for marking of the following materials:
Anodized metals, burnished, black and painted surfaces, ceramics, plastics, polycarbonate, silicon, ebony.
The fiber lasers allow a considerable increase of the power, without compromising the size of the laser spot. This pledges a better marking result at higher powers and a better efficiency of the system.
Fybra can be controlled by available SW: Nano Software (Standard) and Genius Advanced.
Laser FYBRA is recommended for marking of the following materials:
Anodized metals, burnished, black and painted surfaces, ceramics, plastics, polycarbonate, silicon, ebony.
Technical parameters
Laser beam source
Active fiber
Wavelength
1.050 nm up to 1.090 nm
Output power
22W up to 33W
Input power
< 300W
Dimensions of laser head
400x335x175mm
Weight of laser
< 19,5 kg
Cooling
air
Energy consumption
< 1.5 kW
IP Certificate of cover
IP30 (head IP60)
Marking field
60x60mm, 110x110mm, 155x155mm, 320x320mm
Diameter of laser beam
6 mm (before lens)
MTBF
125.000 hours
