nanoVIS II
Compact and versatile laser head.
As part of the new Automator family of a-Wave® laser marking products, the nanoVISII laser is indeed low-cost laser with a large applications field.
This laser is recommended for smaller up to medium productions. The laser makes the marking and signing the products and parts more accessible even for small productions. Thanks to its simple shape and weight of only 6 kg it is ideal for implementing in the special housing cover to create ergonomic marking station.
As well as the past products, also the new generation of the Automator lasers are produced and certified by EU law. Therefore, the lasers are safe for operators and suitable for most of demands.
Compact and versatile laser head.
As part of the new Automator family of a-Wave® laser marking products, the nanoVISII laser is indeed low-cost laser with a large applications field.
This laser is recommended for smaller up to medium productions. The laser makes the marking and signing the products and parts more accessible even for small productions. Thanks to its simple shape and weight of only 6 kg it is ideal for implementing in the special housing cover to create ergonomic marking station.
As well as the past products, also the new generation of the Automator lasers are produced and certified by EU law. Therefore, the lasers are safe for operators and suitable for most of demands.
![nanoVIS - back sight nanoVIS II Automator laser](https://www.automatorgroup.eu/wp-content/uploads/2021/04/nanoVIS-back-sight.jpg)
How this laser works

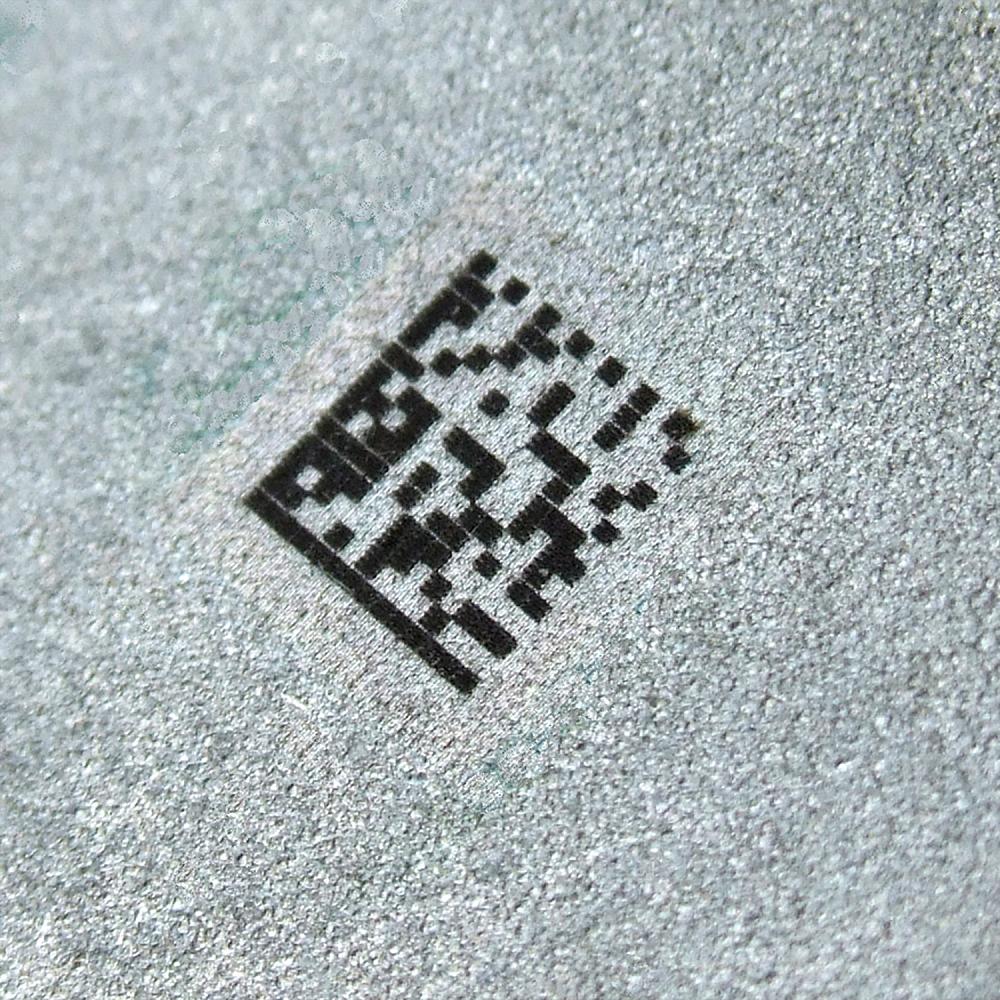

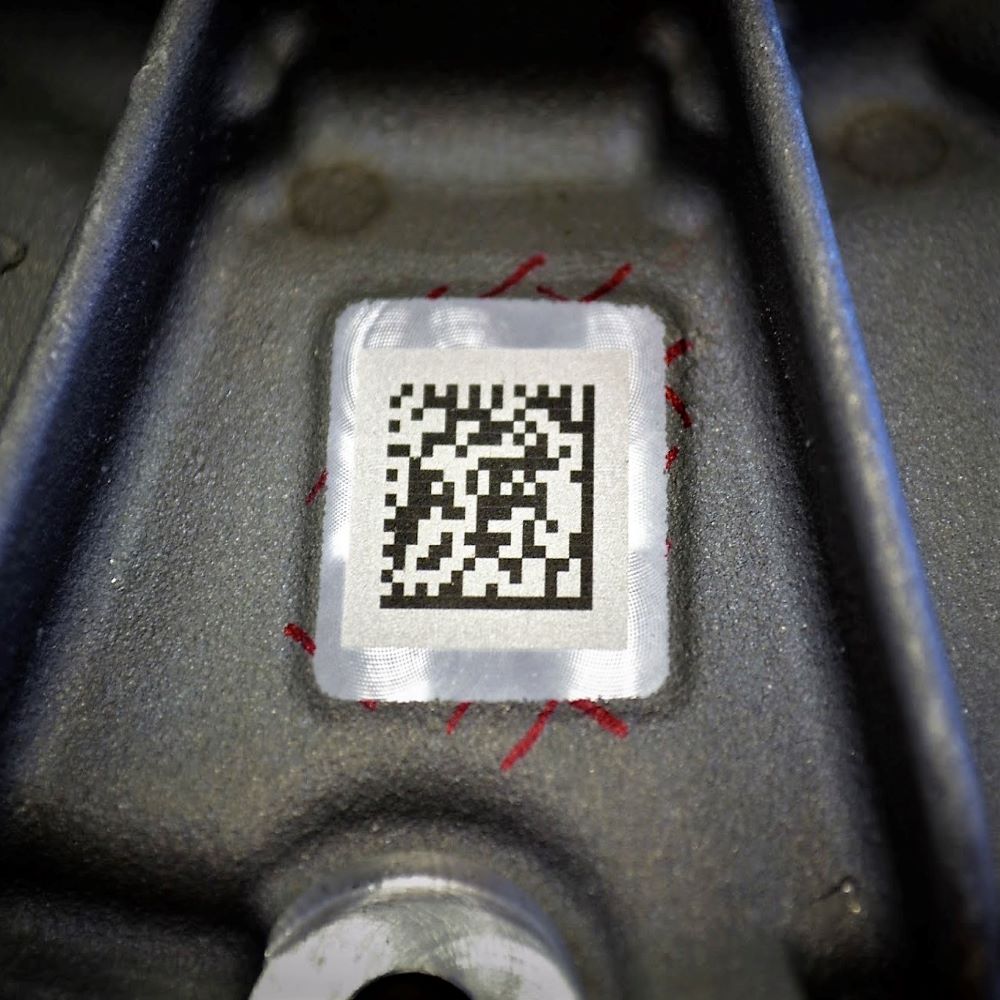

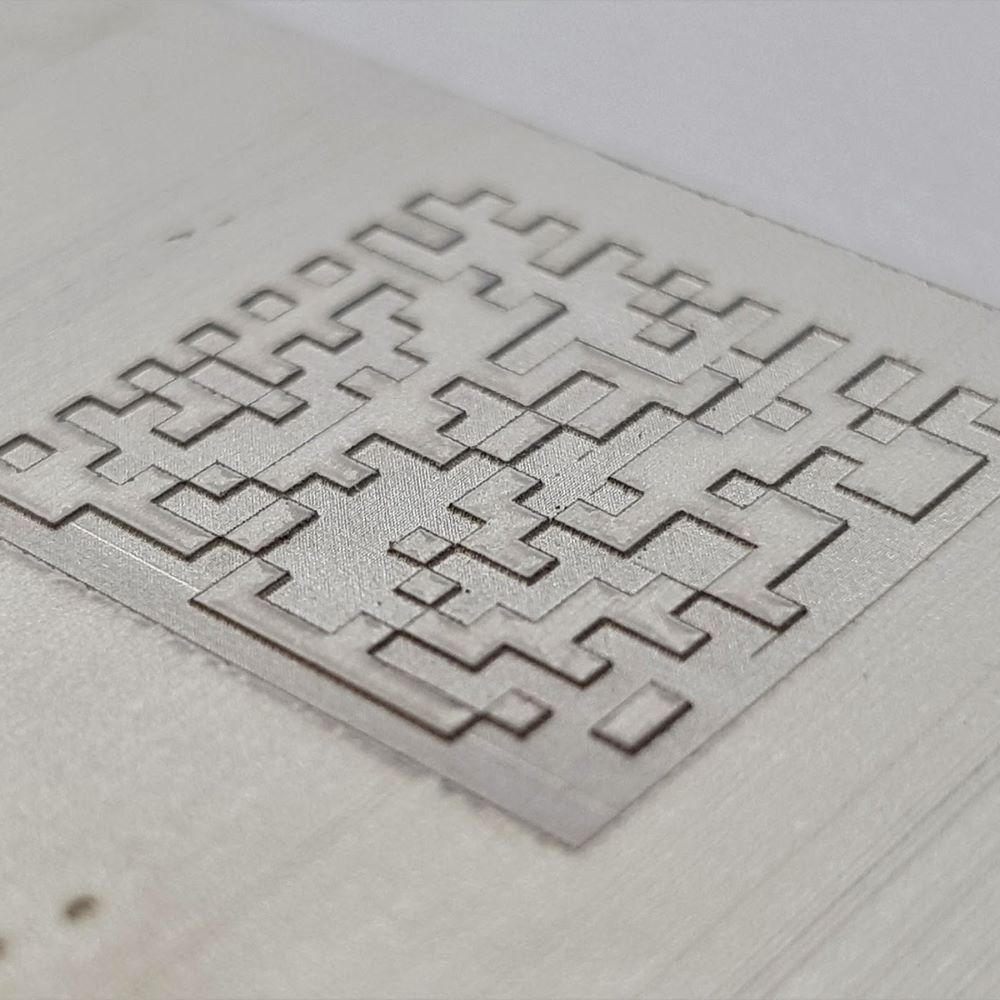

nanoVISII laser is controlled by EuGenius® SW. This software makes from this laser rather powerful tool and provides many options and controls to the operator. You can mark any default objects, TTF fonts (Windows™), shift, date and time codes, QR or Datamatrix code, custom fields, and so on.

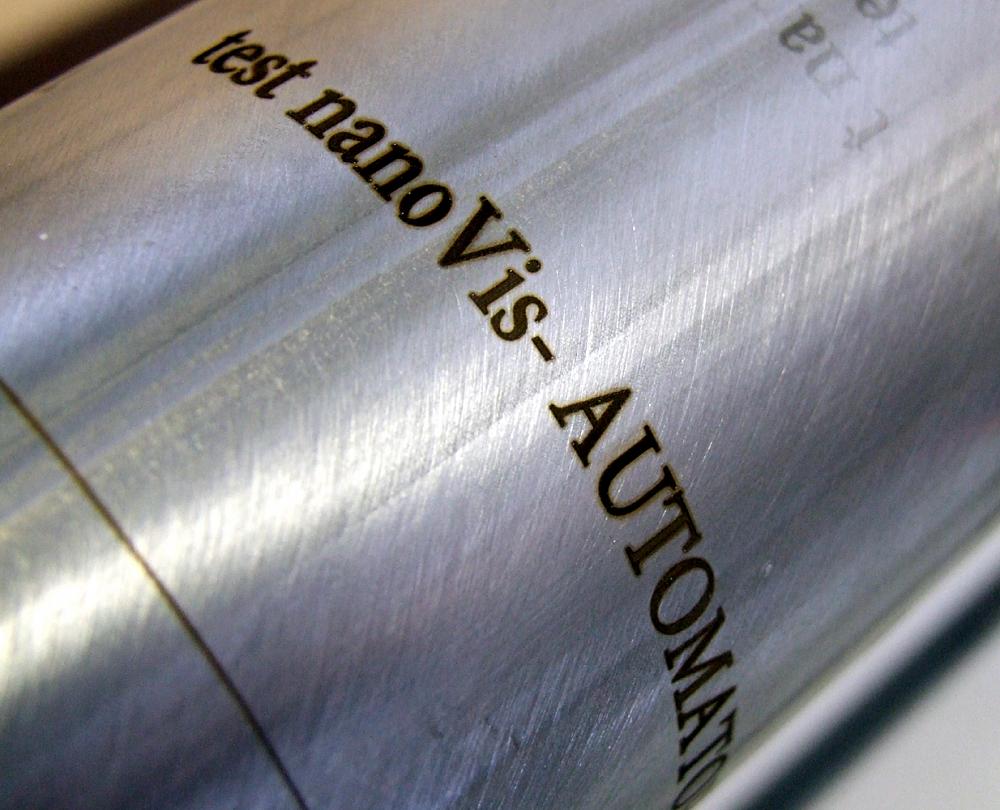

You can achieve perfect results with nanoVISII especially in marking of plastics and metals. Thanks to aWave technology, you can mark variety of the materials without necessity to combine different laser sources and powers.
Laser nanoVIS is recommended to mark following materials:

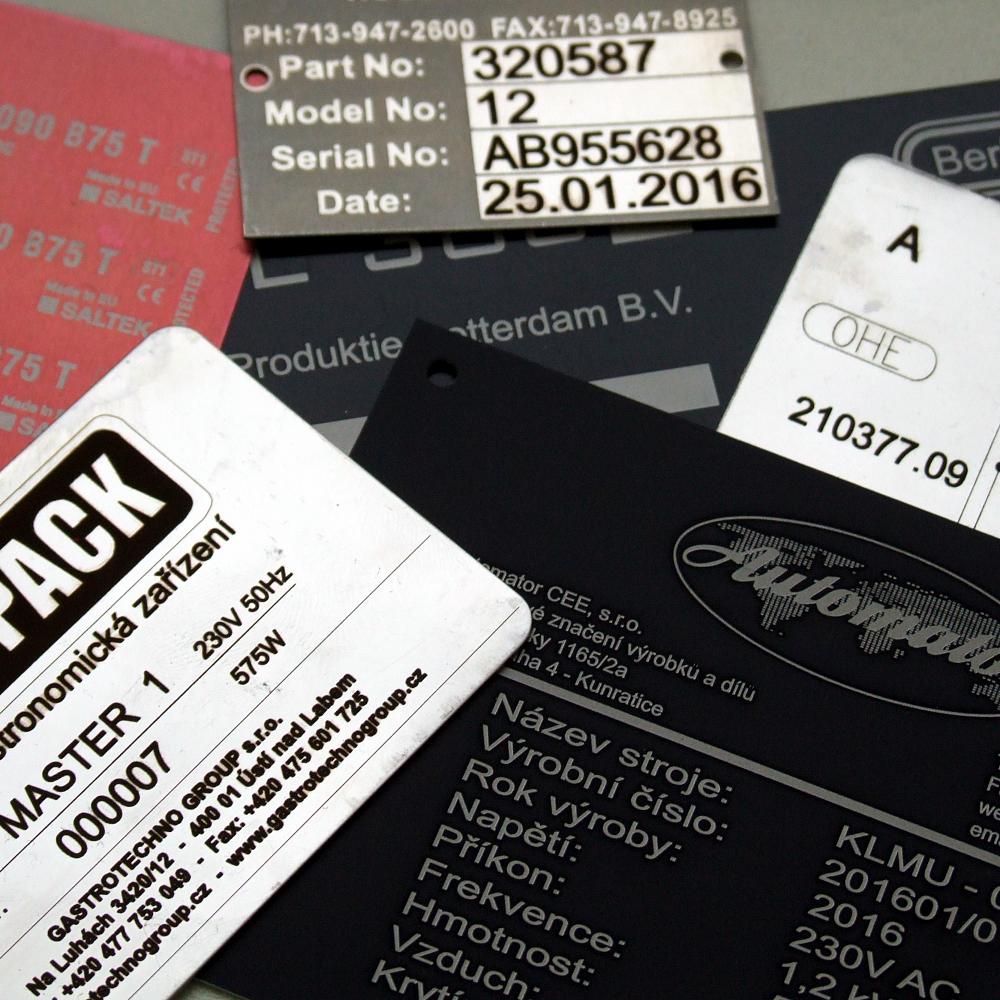

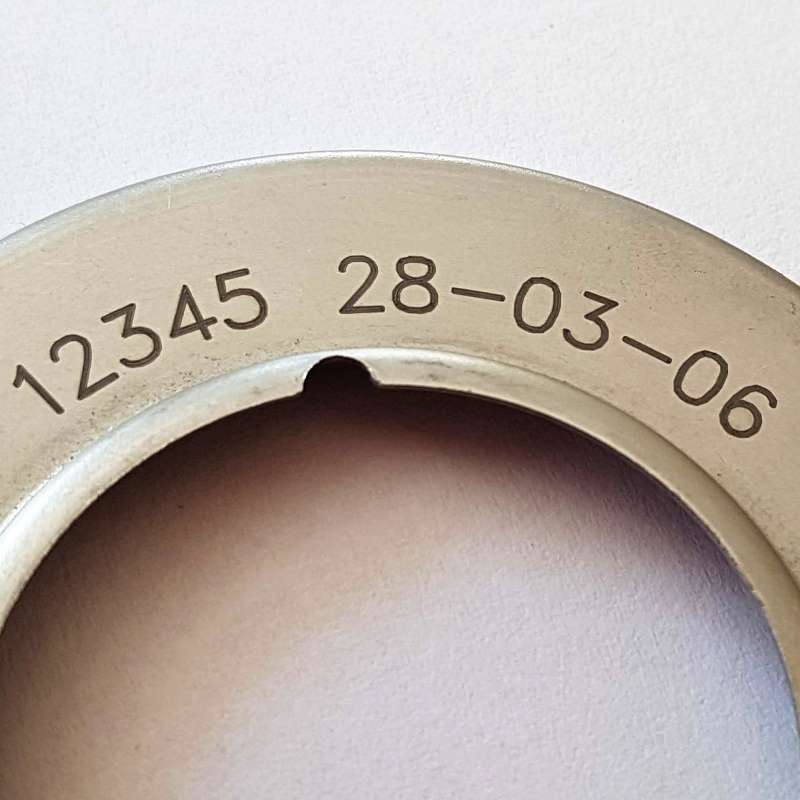

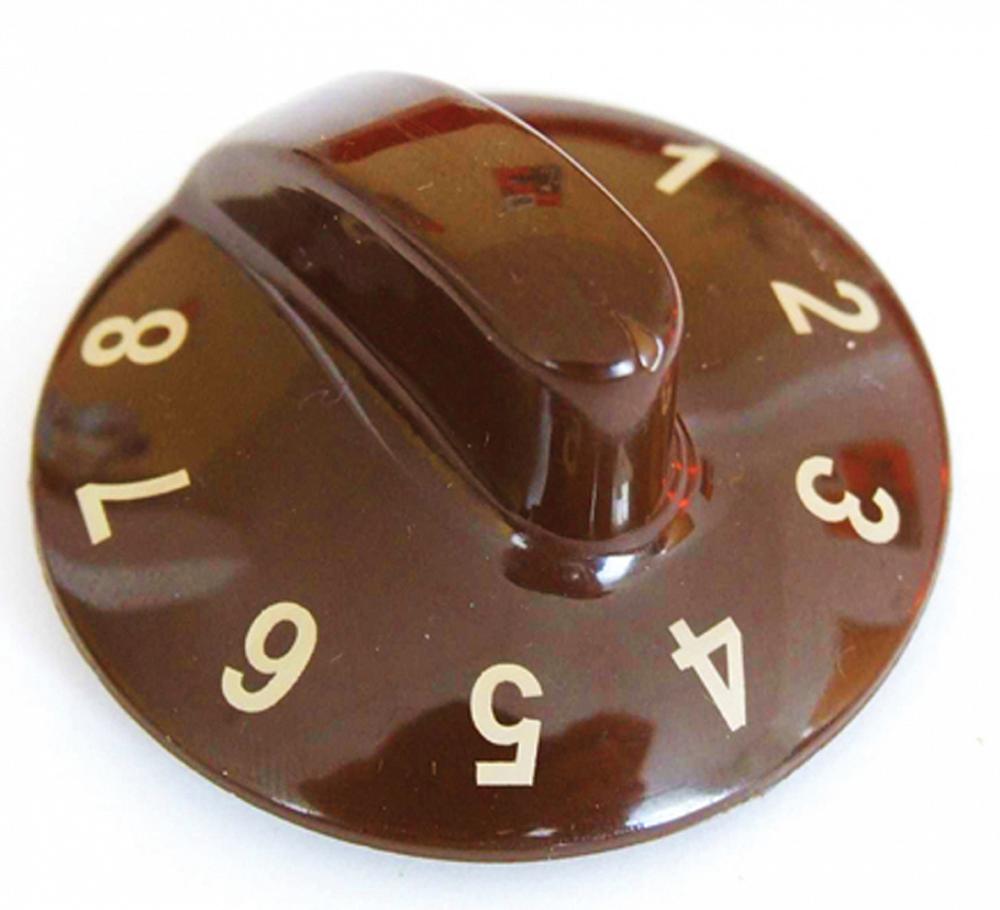

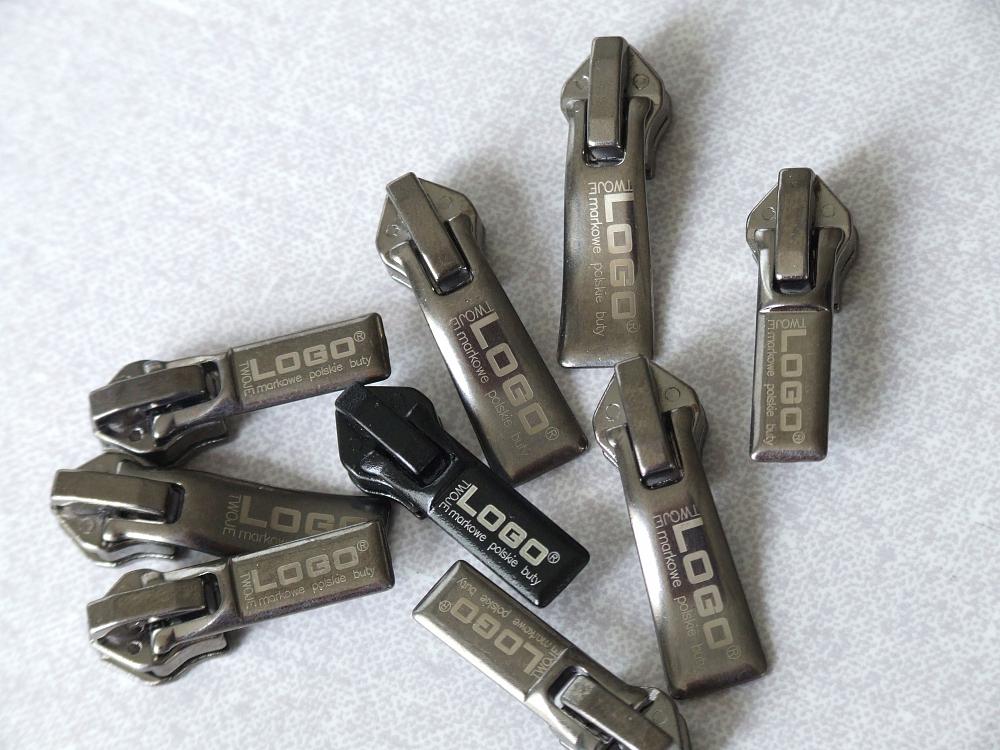

Anodized metal, burnished, black and painted surface, ceramics, plastics, polycarbonate, silicon, ebony and much more.
nanoVISII laser is controlled by EuGenius® SW. This software makes from this laser rather powerful tool and provides many options and controls to the operator. You can mark any default objects, TTF fonts (Windows™), shift, date and time codes, QR or Datamatrix code, custom fields, and so on.
You can achieve perfect results with nanoVISII especially in marking of plastics and metals. Thanks to aWave technology, you can mark variety of the materials without necessity to combine different laser sources and powers.
Laser nanoVIS is recommended to mark following materials:
Anodized metal, burnished, black and painted surface, ceramics, plastics, polycarbonate, silicon, ebony and much more.
Technical parameters
![](https://www.automatorgroup.eu/wp-content/uploads/2019/10/3809.jpg)
Beam source
aWaveTM Tech
![](https://www.automatorgroup.eu/wp-content/uploads/2019/10/3799.jpg)
Wavelength
@ 1.064 nm
automatic regulation
![](https://www.automatorgroup.eu/wp-content/uploads/2019/10/3800.jpg)
Frequency
10 Hz up to 25 kHz
![](https://www.automatorgroup.eu/wp-content/uploads/2019/10/3801.jpg)
Output power
6W up to 20W
![](https://www.automatorgroup.eu/wp-content/uploads/2019/10/3802.jpg)
Input power
< 300W
![](https://www.automatorgroup.eu/wp-content/uploads/2019/10/3803.jpg)
Dimensions of laser head
284x163x167mm
![](https://www.automatorgroup.eu/wp-content/uploads/2019/10/3804.jpg)
Weight of laser
< 6 kg
![](https://www.automatorgroup.eu/wp-content/uploads/2019/10/3805.jpg)
Coolong
air
![](https://www.automatorgroup.eu/wp-content/uploads/2019/10/3806.jpg)
Energy consumption
< 1.5 kW
![](https://www.automatorgroup.eu/wp-content/uploads/2019/10/3807.jpg)
IP Certificate of cover
IP45
![](https://www.automatorgroup.eu/wp-content/uploads/2019/10/3808.jpg)
Marking field
70x70mm, 110x110mm, 155x155mm
![](https://www.automatorgroup.eu/wp-content/uploads/2019/10/3810.jpg)
Laser beam diameter
cca 50 µm (standard lens F160)
![](https://www.automatorgroup.eu/wp-content/uploads/2019/10/3811.jpg)
Pulse width
5 - 15 ns
![](https://www.automatorgroup.eu/wp-content/uploads/2019/10/3812.jpg)
MTBF
20.000 hours
